Product: Made in Japan
Manufacturer: TONE
Model: RH20
Oval head standard ratchet handle
| Specification | Details |
|---|---|
| Model | RH20 |
| Square Drivedr. (mm) | 6.35 |
| D | 21 |
| H | 17.9 |
| T | 10.0 |
| L | 115 |
| (Usually) | 1 |
| (Store ornament) | 6 |
| Weight (g) | 90 |
| ■ RH20 Parts table | NO. Part Model Descriptions Number |
| 1 | GPRH20G Gear 1 |
| 2 | GPRH20P Cam 1 |
| 3 | GPRH20C Lid 1 |
| 4 | GPRH20L Switching handle 1 |
| 5 | GPRH20V Screw ((+) countersunk head screw M2.6 x 9.9) 2 |
| 6 | GPRH20B2 Ball 1 |
| 7 | GPRH20S Switching spring 1 |

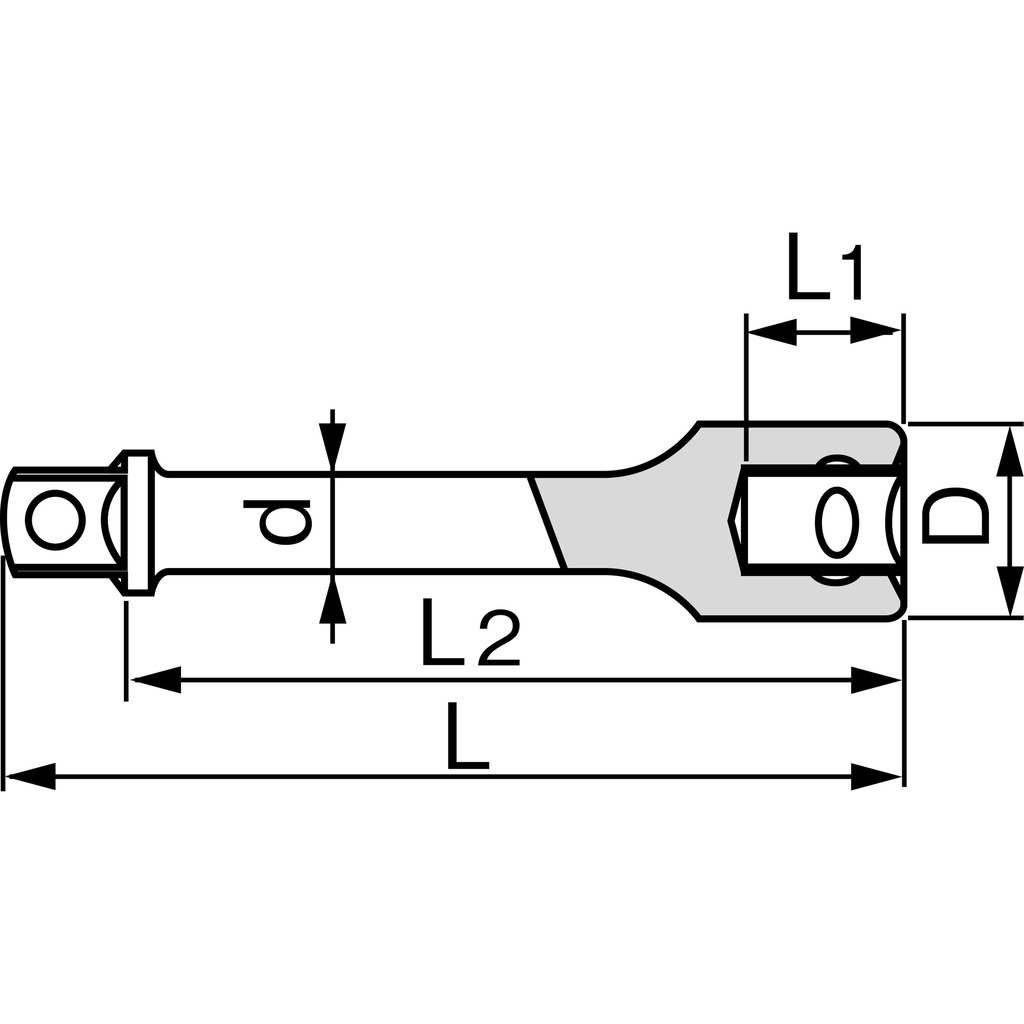

● Dimensional drawing
