Air motor tightens really fast
* Air is automatically shut out when torque reaches a set value.
PRODUCT SPEC
| Model | Tip tool mounting size | Capacity standard screw O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|
GT-S4TS |
H6.35 | 2.2 to 3.0 | 0.5～1.3 | 1700 | 0.28 | 0.6 | 6.35 | 215 | 640 | 311202 |
Tip tool mounting type : Ball spring retainer
Starting type: Push type
Noise reducer: Noize reducer
Exhaust: Rear exhaust
Hose Coupling: Rc1/4
Contents
* Bit A14 Ph No.2 x 65G * Plug BPB-2
Relevant
* Torque Spring Hose Coupling (1/8")
Item PKG
250 x 80 x 60

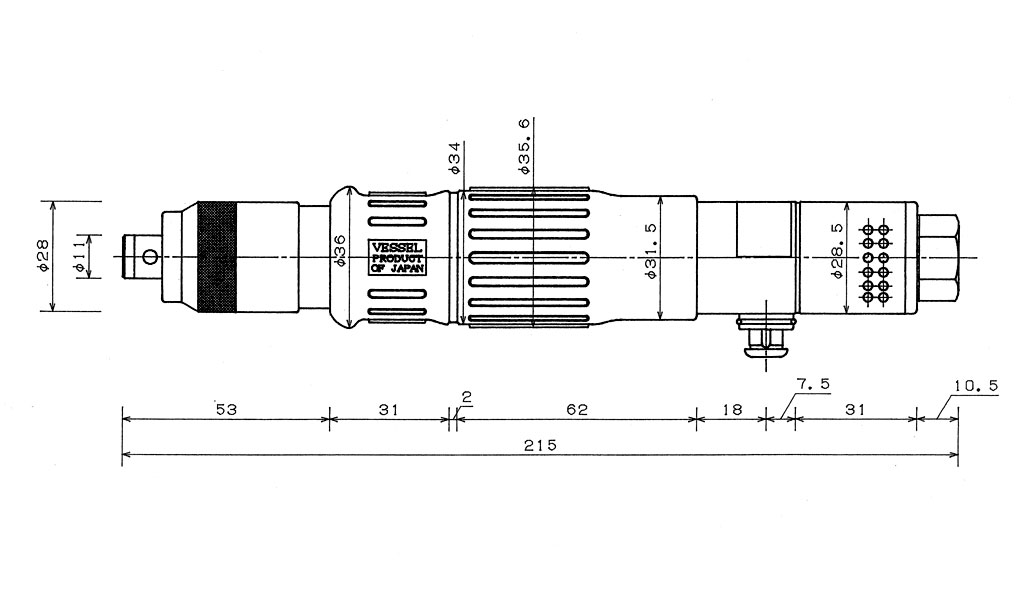

DRAWING / CAD
