Air motor tightens really fast
* Models with the best balance between strength and lightness.
PRODUCT SPEC
| Model | Tip tool mounting size | Anvil length (mm) |
Adjustment dial steps | Capacity ordinary bolt O/D (mm) |
Torque range (N・m) |
No load speed (rpm) |
Air consumption (m³/min) |
Air pressure (MPa) |
Air hose inner O/D (mm) |
Overall Length (mm) |
Weight (g) |
Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-S55R |
SQ25.4 | 225 | 4 | 52 | 343～2450 | 2800 | 1.2 | 0.6 | 12.7 | 610 | 17000 | 335391 |
Tip tool mounting type : Pin-lock
Noise reducer: Noize reducer
Hose Coupling: Rc1/2
Contents
* Plug BPB-4 * L-wrench H5, H6
* Plug BPB-4 * L-wrench H5, H6
Relevant
* Short anvil (50mm)
* Short anvil (50mm)
Item PKG
710 x 300 x 170
710 x 300 x 170

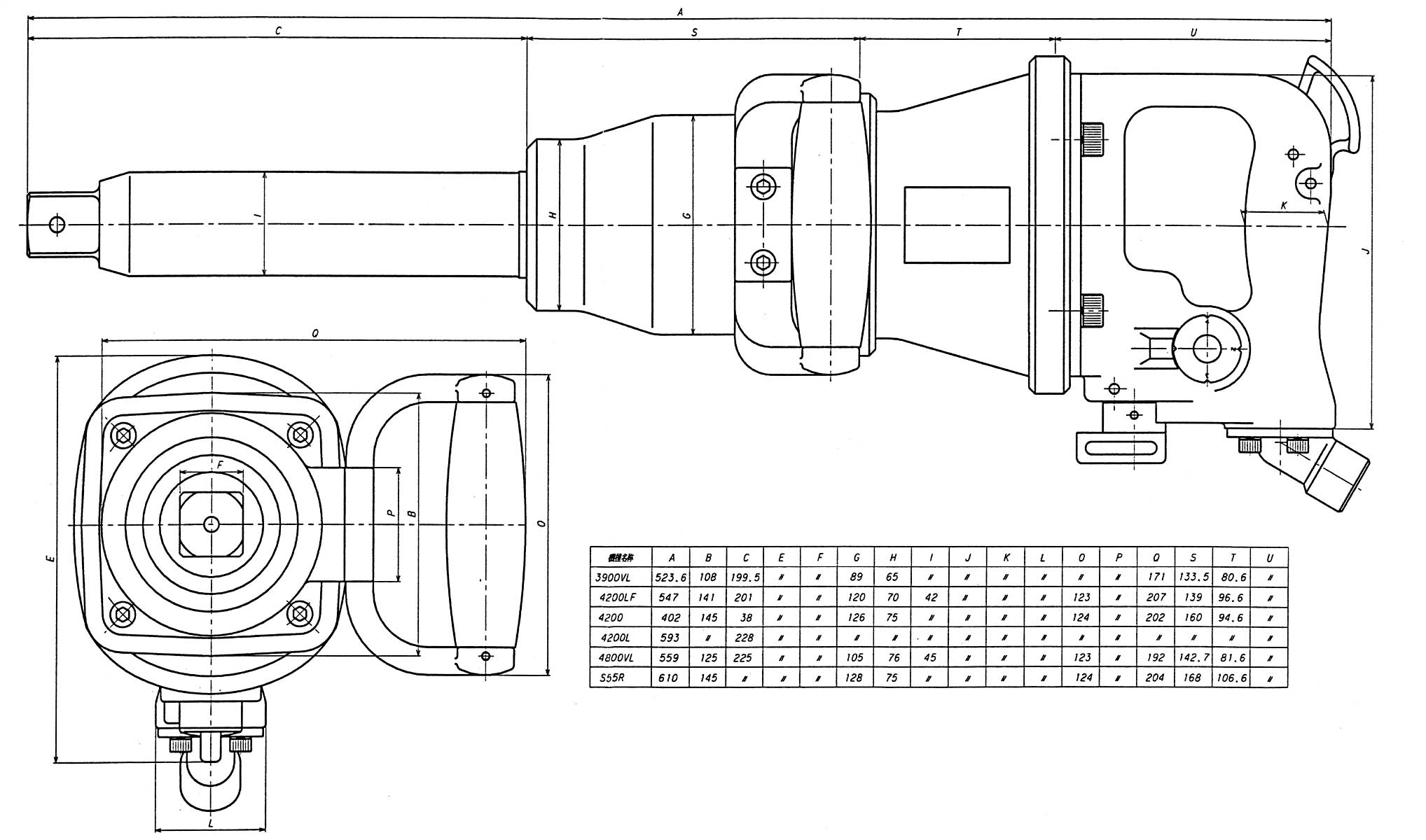

DRAWING / CAD
| BRAND | |
|---|---|
| Product type |
