Air motor tightens really fast
* Models with the best balance between strength and lightness.
* Designed so that the center of gravity comes to the center of the whole body with the socket and air hose attached.
PRODUCT SPEC
| Model | Tip tool mounting size | Anvil length (mm) |
Adjustment dial steps | Capacity ordinary bolt O/D (mm) |
Torque range (N・m) |
No load speed (rpm) |
Air consumption (m³/min) |
Air pressure (MPa) |
Air hose inner O/D (mm) |
Overall Length (mm) |
Weight (g) |
Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-3800LX |
SQ25.4 | 203 | 3 | 39 | 490～1607 | 4100 | 0.7 | 0.6 | 12.7 | 520 | 9800 | 335370 |
Tip tool mounting type : Retainer ring
Noise reducer: Noise reducer
Exhaust: Rear exhaust
Hose Coupling: Rc1/2
Contents
* Plug BPB-4 * L-wrench H5
Item PKG
560 x 190 x 165

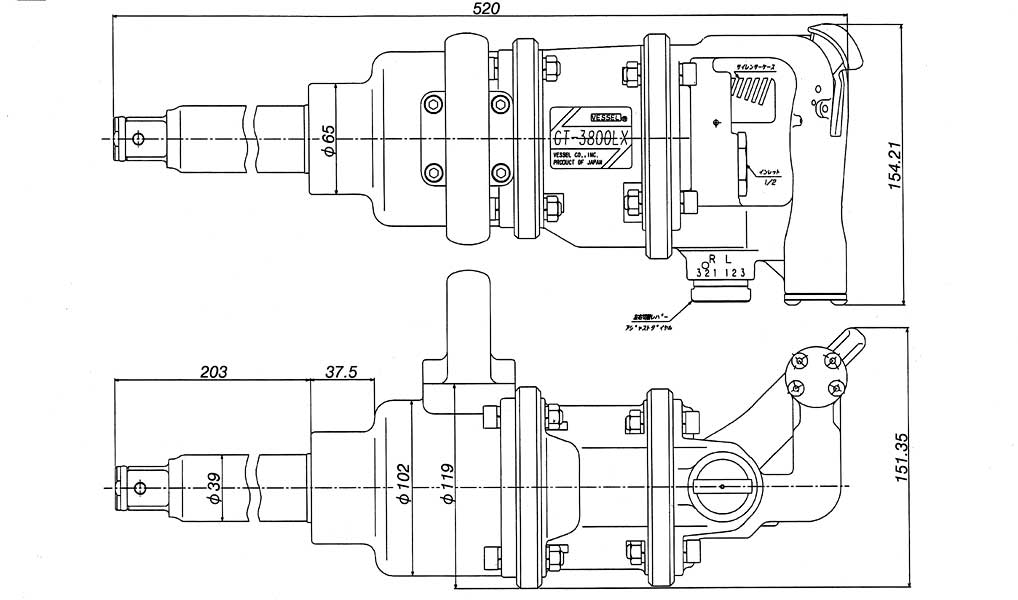

DRAWING / CAD
