Air motor tightens really fast
* Corner type impact wrench.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
GT-S60CW |
SQ9.5 | 4 | 6 to 8 | 25～47 | 7300 | 0.35 | 0.6 | 6.35 | 255 | 1870 | 324011 |
Tip tool mounting type : Pin-lock
Hose Coupling: Rc1/4
Contents
* Socket A/F 10 * Plug BPB-2 * L-wrench H4
Item PKG
255 x 100 x 50

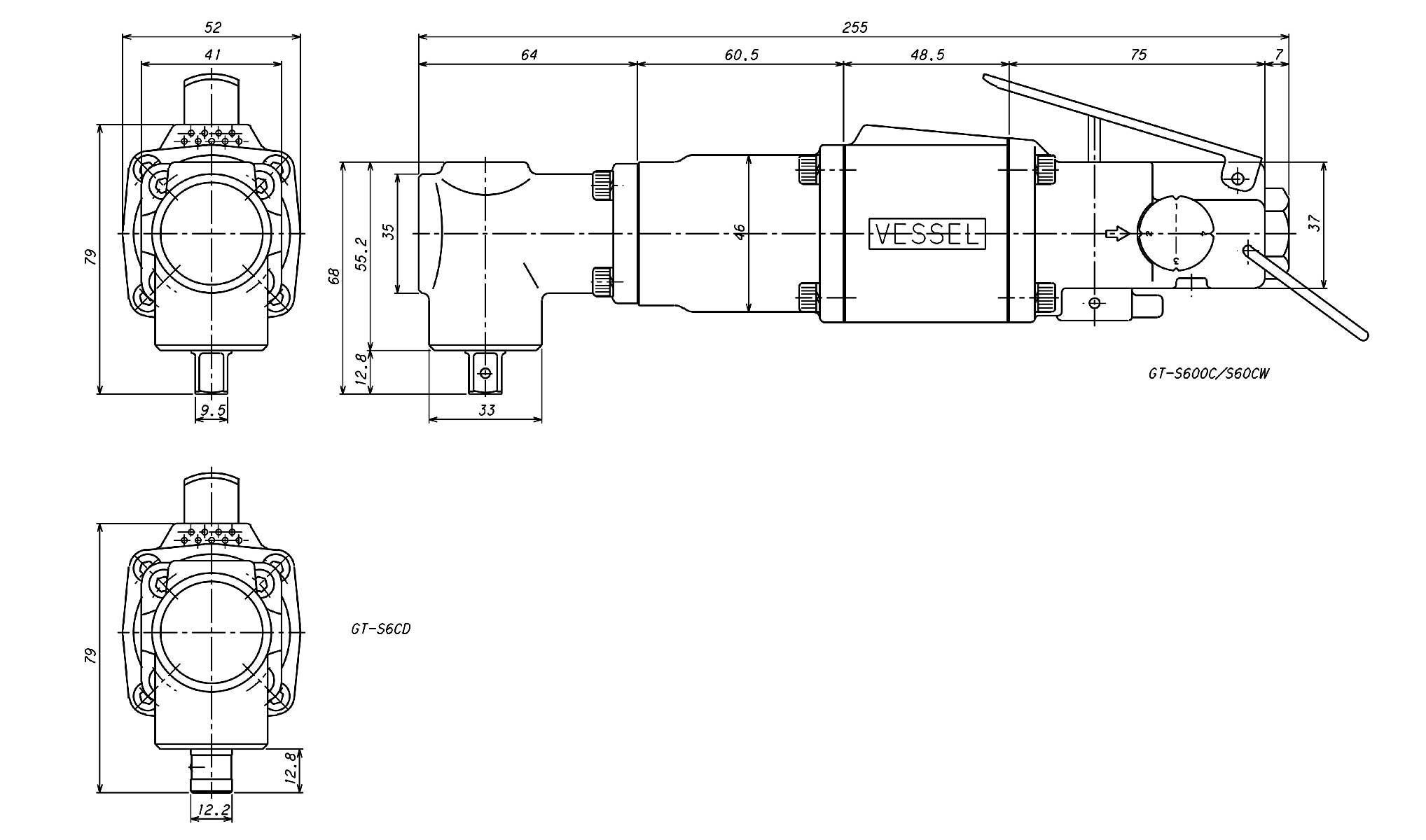

DRAWING / CAD
