Air motor tightens really fast
* Compact and lightweight.
* Basic models for assembly plant.
PRODUCT SPEC
| Model | Tip tool mounting size | Capacity standard screw O/D(mm) | Capacity self-tapping screw O/D(mm) | Capacity wood screw O/D(mm) | Capacity bolt O/D(mm) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-S4.5DR |
H6.35 | 4.0 to 5.0 | 3.5 to 4.0 | 2.7 to 3.5 | 4.0 to 5.0 | 14000 | 0.2 | 0.6 | 6.35 | 180 | 585 | 311084 |
Tip tool mounting type : Bit sleeve retainer
Starting type: Lever type
Noise reducer: Noize reducer
Hose Coupling: G1/4
Contents
* Bit A14 Ph No.2 x 65G * Plug BPN-2F
Item PKG
250 x 80 x 60

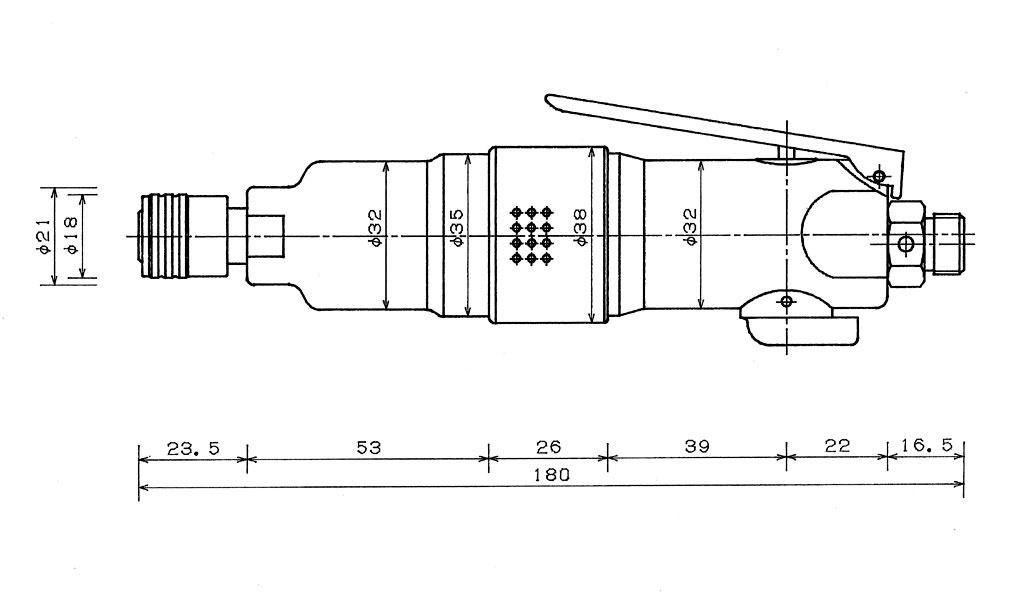

DRAWING / CAD
