Air motor tightens really fast
* Corner type impact wrench.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D (mm) |
Torque range (N・m) |
No load speed (rpm) |
Air consumption (m3/min) |
Air pressure (MPa) |
Air hose inner O/D (mm) |
Overall Length (mm) |
Weight (g) |
Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
GT-P8II |
SQ12.7 | 3 | 8 to 10 | 49～259.8 | 7500 | 0.4 | 0.6 | 6.35 | 166 | 1890 | 331244 |
Tip tool mounting type : Retainer ring
Hose Coupling: Rc1/4
Hose Coupling: Rc1/4
Contents
* Plug BPB-2 * L-wrench H4
* Plug BPB-2 * L-wrench H4
Item PKG
220 x 205 x 70
220 x 205 x 70

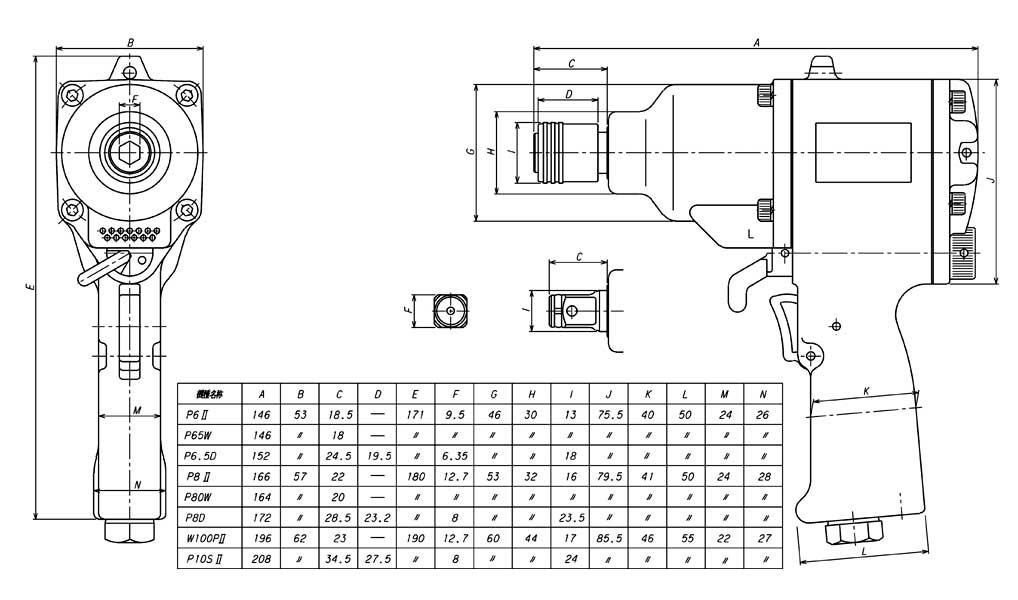

DRAWING / CAD
