Air motor tightens really fast
* For strong tightening work.
* Excellent durability.
* Long anvil model also available.
PRODUCT SPEC
| Model | Tip tool mounting size | Anvil length(mm) | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m³/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-P14JL |
SQ12.7 | 54 | 4 | 14 to 16 | 75～323.6 | 6500 | 0.42 | 0.6 | 6.35 | 226 | 3000 | 331276 |
Tip tool mounting type : Retainer ring
Hose Coupling: Rc1/4
Hose Coupling: Rc1/4
Contents
* Plug BPB-2 * L-wrench H5
* Plug BPB-2 * L-wrench H5
Item PKG
320 x 260 x 95
320 x 260 x 95

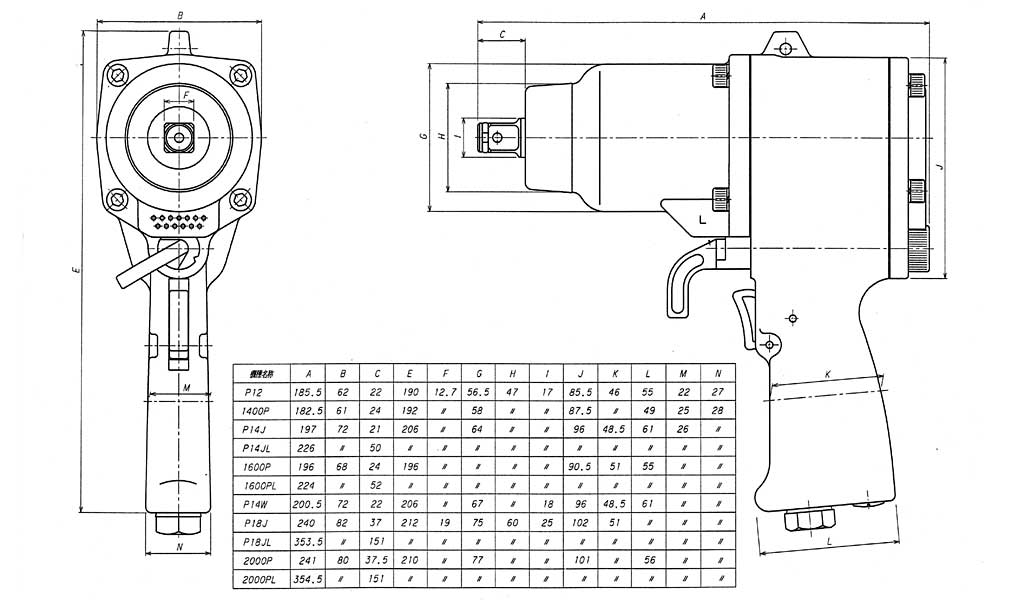

DRAWING / CAD
