Air motor tightens really fast
* For strong tightening work.
* Excellent durability.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
GT-P12 |
SQ12.7 | 4 | 12 to 14 | 49～294.1 | 7500 | 0.4 | 0.6 | 6.35 | 185 | 2300 | 331262 |
Tip tool mounting type : Retainer ring
Hose Coupling: Rc1/4
Contents
* Plug BPB-2 * L-wrench H4
Item PKG
220 x 205 x 70

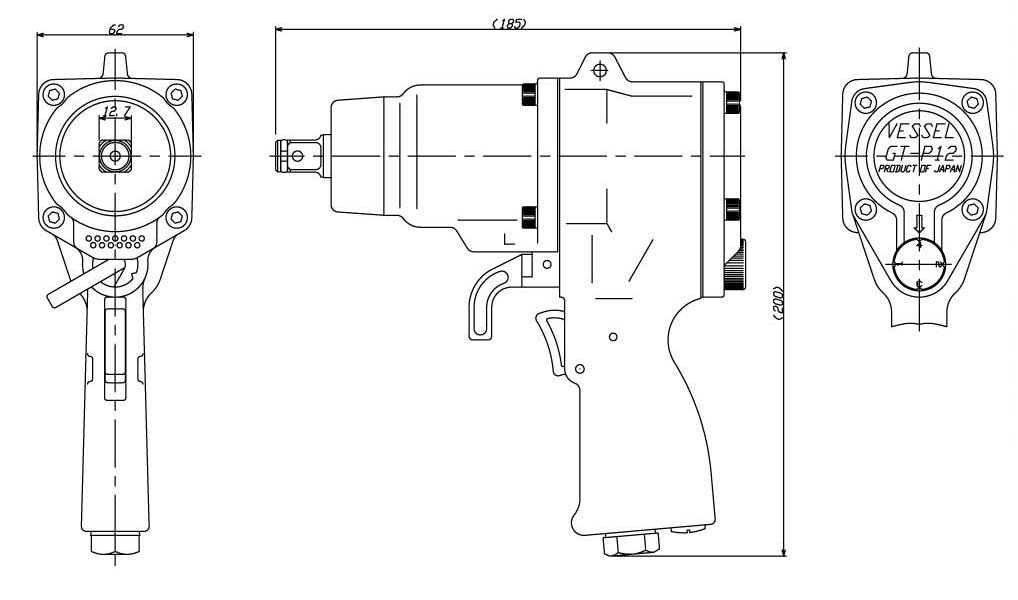

DRAWING / CAD
| BRAND | |
|---|---|
| Product type |
