Air motor tightens really fast
* For strong tightening work.
* Excellent durability.
PRODUCT SPEC
| Model | Tip tool mounting size | Anvil length(mm) | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m³/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-4200L |
SQ25.4 | 228 | 4 | 27 to 42 | 490～1863 | 3200 | 1 | 0.6 | 12.7 | 593 | 15900 | 335378 |
Tip tool mounting type : Pin-lock
Hose Coupling: Rc1/2
Hose Coupling: Rc1/2
Contents
* Plug BPB-3 * L-wrench H5, H6
* Plug BPB-3 * L-wrench H5, H6
Relevant
* Spline shor anvilt (38mm)
* Spline shor anvilt (38mm)
Item PKG
710 x 300 x 170
710 x 300 x 170

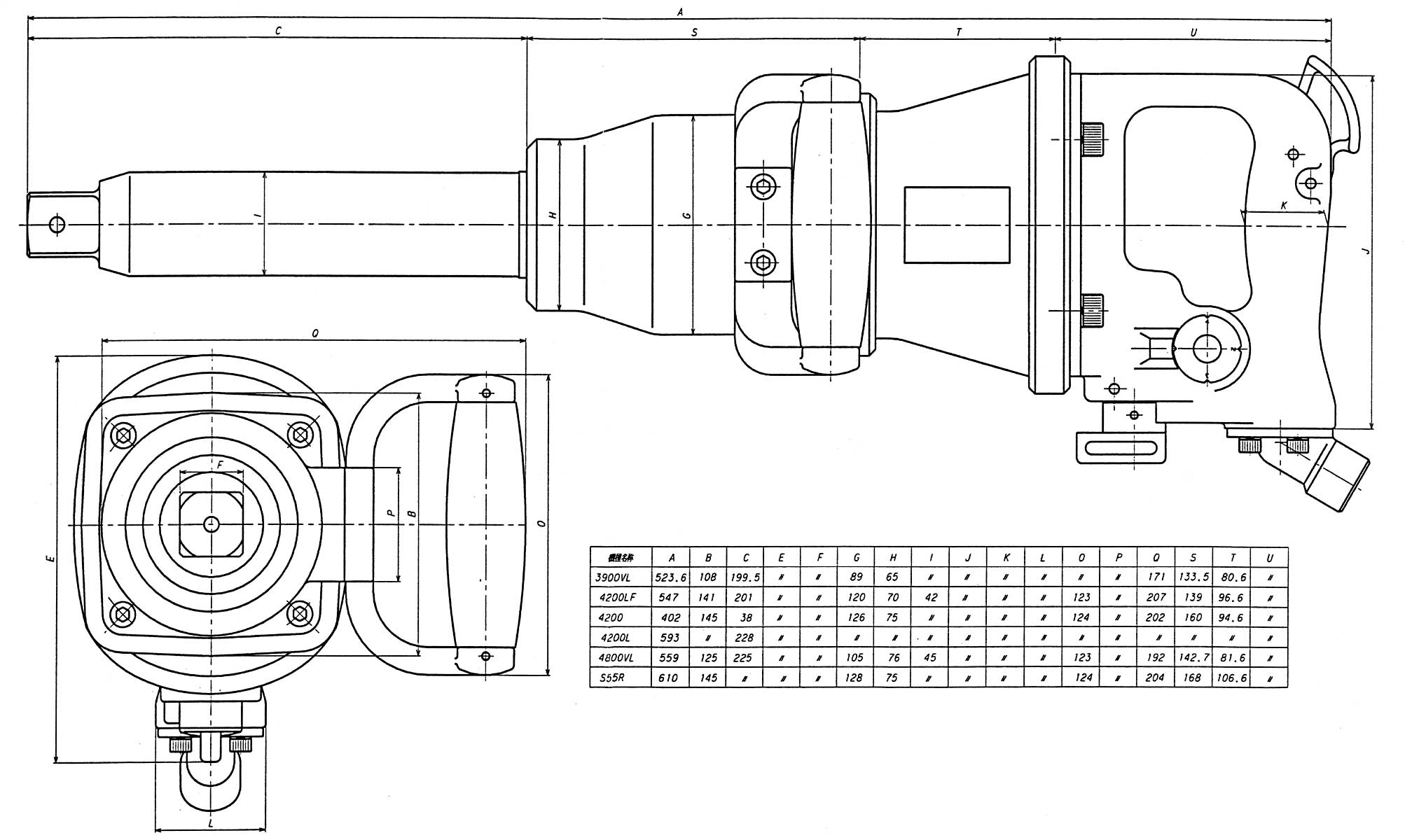

DRAWING / CAD
