Air motor tightens really fast
* Compact, lightweight and high power with V shape hammer system.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D (mm) |
Torque range (N・m) |
No load speed (rpm) |
Air consumption (m³/min) |
Air pressure (MPa) |
Air hose inner O/D (mm) |
Overall Length (mm) |
Weight (g) |
Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GT-3900VP | SQ25.4 | 4 | 39 | 490～1716 | 4200 | 0.7 | 0.6 | 12.7 | 268 | 7950 | 336118 |
Tip tool mounting type: Retainer ring
Hose Coupling: Rc3/8
Hose Coupling: Rc3/8
Contents
* Plug BPB-3 * L-wrench H5, H6
* Plug BPB-3 * L-wrench H5, H6
Item PKG
340 x 315 x 135
340 x 315 x 135

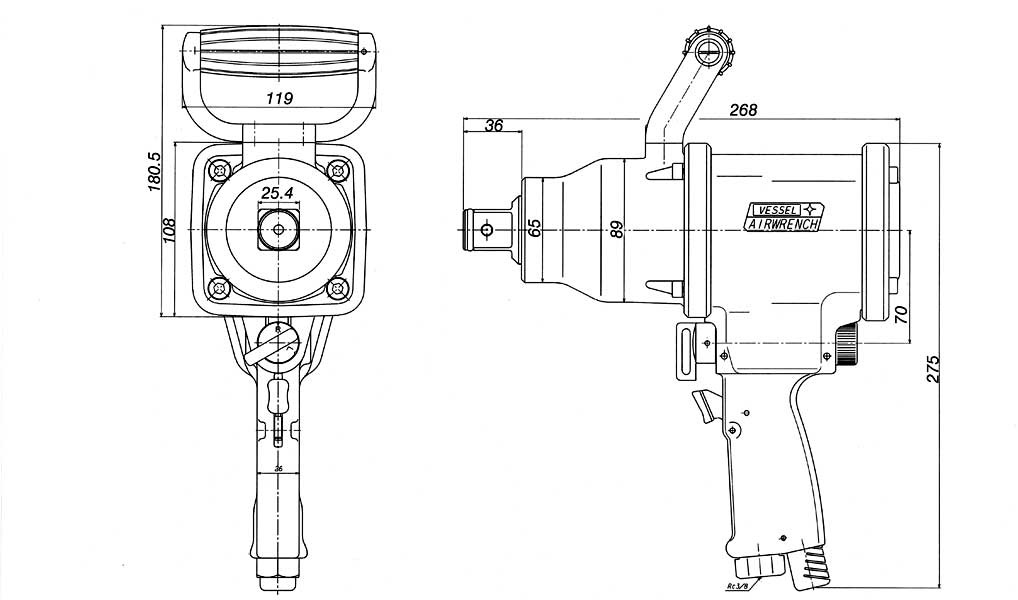

DRAWING / CAD
