Air motor tightens really fast
* Compact, lightweight and high power with V shape hammer system.
PRODUCT SPEC
| Model | Tip tool mounting size |
Anvil length (mm) |
Adjustment dial steps |
Capacity ordinary bolt O/D (mm) |
Torque range (N・m) |
No load speed (rpm) |
Air consumption (m³/min) |
Air pressure (MPa) |
Air hose inner O/D (mm) |
Overall Length (mm) |
Weight (g) |
Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-3900VL |
SQ25.4 | 200 | 4 | 39 | 490～1716 | 4200 | 0.7 | 0.6 | 12.7 | 524 | 8950 | 336117 |
Tip tool mounting type : Retainer ring
Hose Coupling: Rc1/2
Contents
* Plug BPB-4 * L-wrench H5, H6
* Plug BPB-4 * L-wrench H5, H6
Item PKG
590 x 240 x 130
590 x 240 x 130

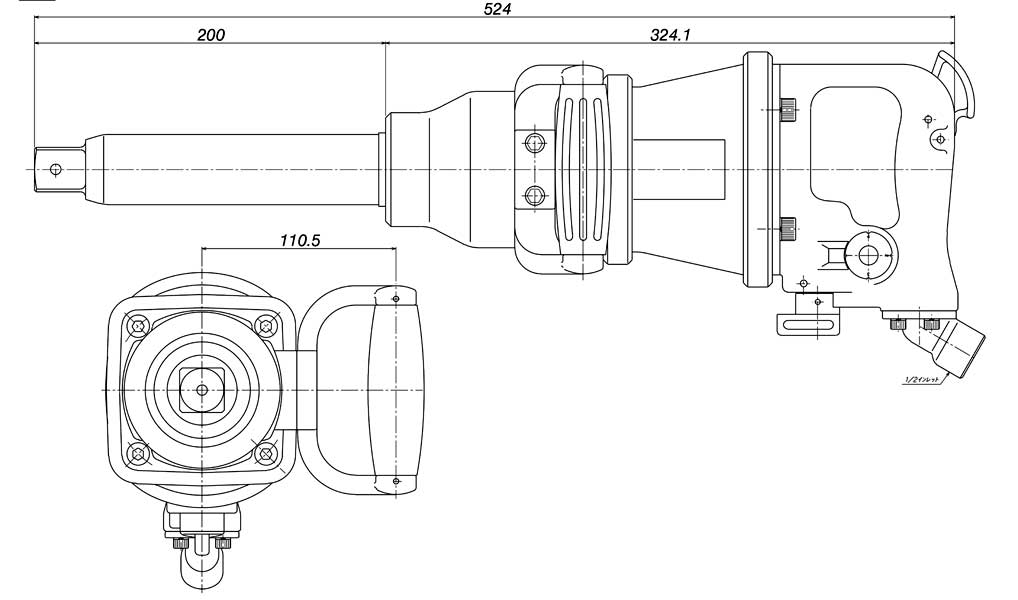

DRAWING / CAD
| BRAND | |
|---|---|
| Product type |
