Air motor tightens really fast
* Models with the best balance between strength and lightness.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D (mm) |
Torque range (N・m) |
No load speed (rpm) |
Air consumption (m³/min) |
Air pressure (MPa) |
Air hose inner O/D (mm) |
Overall Length (mm) |
Weight (g) |
Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GT-2500PF | SQ19 | 4 | 25 | 147～961 | 3200 | 0.6 | 0.6 | 9.5 | 242 | 6200 | 335326 |
Tip tool mounting type : Retainer ring
Noise reducer: Noise reducer
Exhaust: Rear exhaust
Hose Coupling: Rc3/8
Noise reducer: Noise reducer
Exhaust: Rear exhaust
Hose Coupling: Rc3/8
Contents
* Plug BPB-3 * L-wrench H5
* Plug BPB-3 * L-wrench H5
Item PKG
340 x 315 x 135
340 x 315 x 135

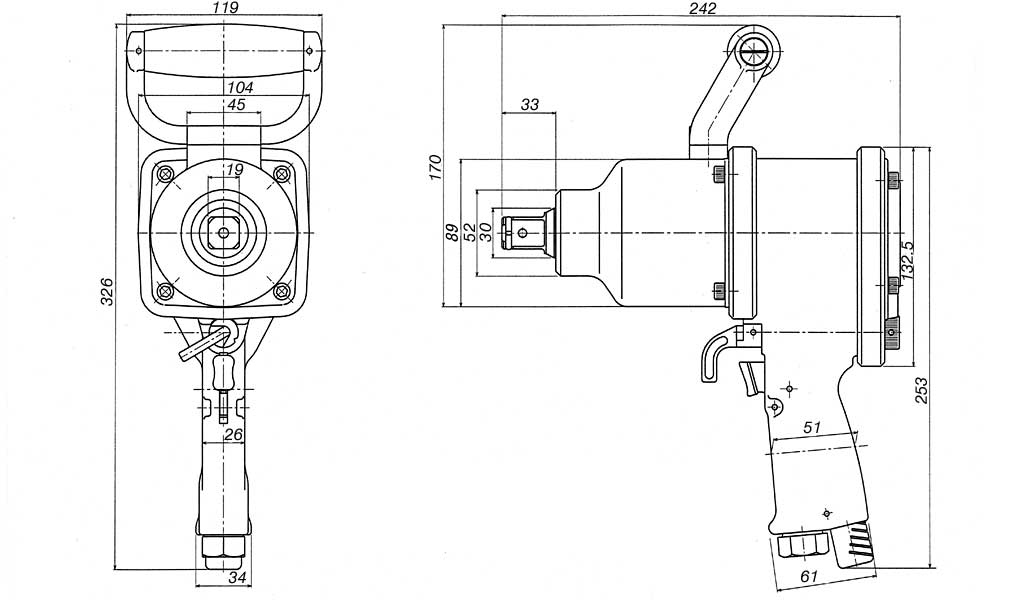

DRAWING / CAD
