Air motor tightens really fast
* Models with the best balance between strength and lightness.
| Model | Tip tool mounting size | Anvil length(mm) | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m³/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-2500LF |
SQ19 | 178 | 4 | 25 | 245～961 | 4400 | 0.7 | 0.6 | 9.5 | 478 | 7300 | 335321 |
Tip tool mounting type : Retainer ring
Hose Coupling: Rc3/8
Hose Coupling: Rc3/8
Contents
* Plug BPB-3 * L-wrench H5, H6
* Plug BPB-3 * L-wrench H5, H6
Item PKG
590 x 240 x 130
590 x 240 x 130

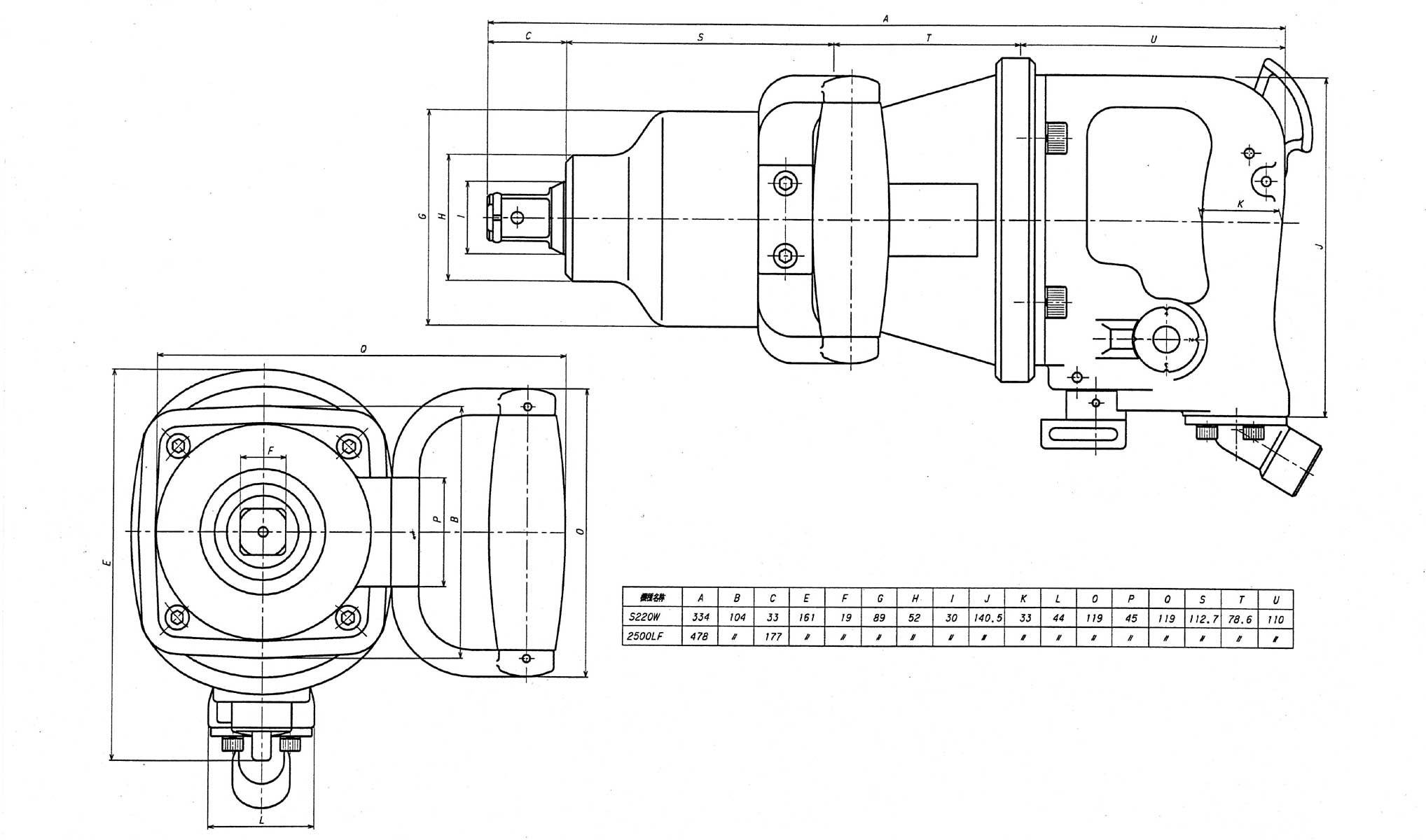

DRAWING / CAD
