Air motor tightens really fast
* Models with the best balance between strength and lightness.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
GT-2000PF |
SQ19 | 4 | 20 | 98～460.9 | 5500 | 0.43 | 0.6 | 9.5 | 210 | 3500 | 331298 |
Tip tool mounting type : Retainer ring
Noise reducer: Noize reducer
Exhaust: Rear exhaust
Hose Coupling: Rc1/4
Noise reducer: Noize reducer
Exhaust: Rear exhaust
Hose Coupling: Rc1/4
Contents
* Plug BPB-2 * L-wrench H5
* Plug BPB-2 * L-wrench H5
Item PKG
320 x 260 x 90
320 x 260 x 90

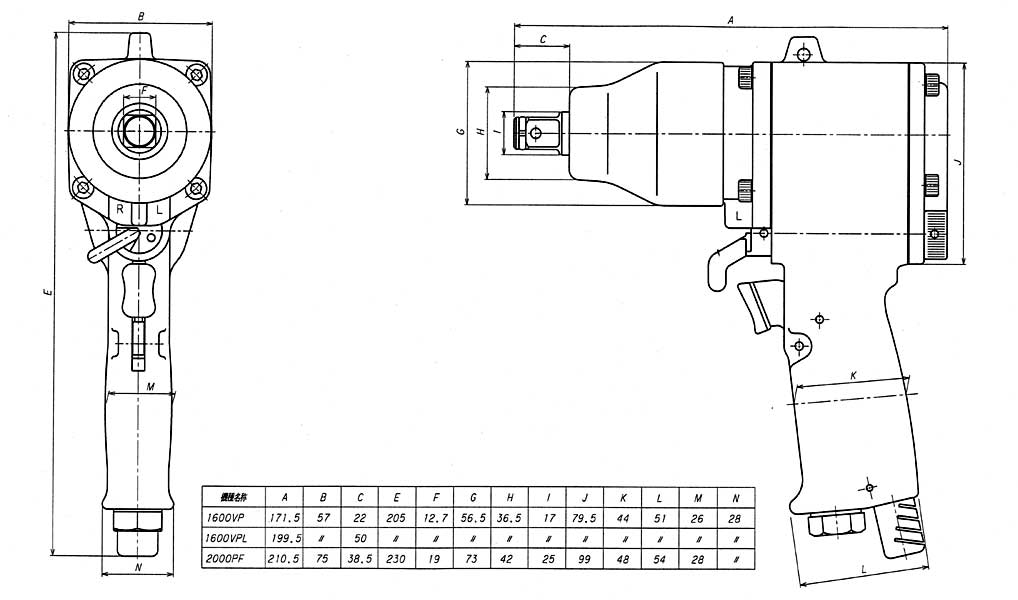

DRAWING / CAD
