Air motor tightens really fast
* Compact, lightweight and high power with V shape hammer system.
* Completely oil-less model with rust-proofing and lubrication treatment on the air passage.
* Maintenance-free and environmental-friendly impact wrench, not causing oil mist.
PRODUCT SPEC
| Model | Tip tool mounting size | Anvil length(mm) | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-1600VPHL |
SQ12.7 | 50 | 4 | 16 | 49～284.3 | 8200 | 0.4 | 0.6 | 6.35 | 202.5 | 1800 | 336017 |
Tip tool mounting type: Retainer ring
Exhaust: Rear exhaust
Hose Coupling: Rc1/4
Contents
* Plug BPB-2
* L-wrench H4
Item PKG
255 x 195 x 80

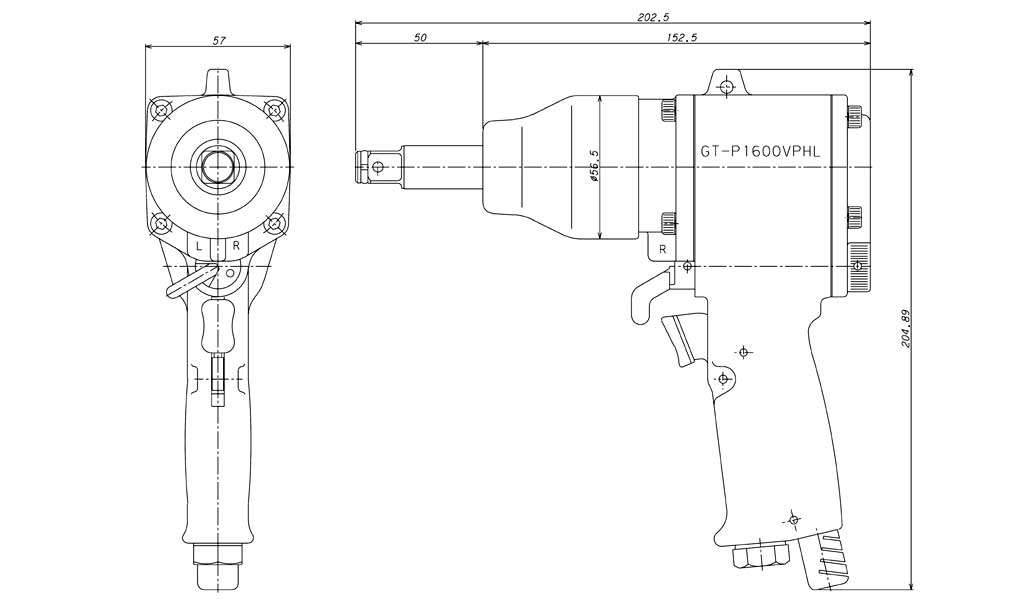

DRAWING / CAD
| BRAND | |
|---|---|
| Product type |
