Air motor tightens really fast
* For powerful constant fastening.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
GT-S32RW |
SQ25.4 | 4 | 33 | 343～1569 | 3600 | 1 | 0.6 | 12.7 | 380 | 1220 | 324088 |
Tip tool mounting type : Pin-lock
Hose Coupling: Rc1/2
Contents
* Plug BPB-4 * L-wrench H5, H6
Relevant
* Long anvil (180mm)
Item PKG
710 x 300 x 170

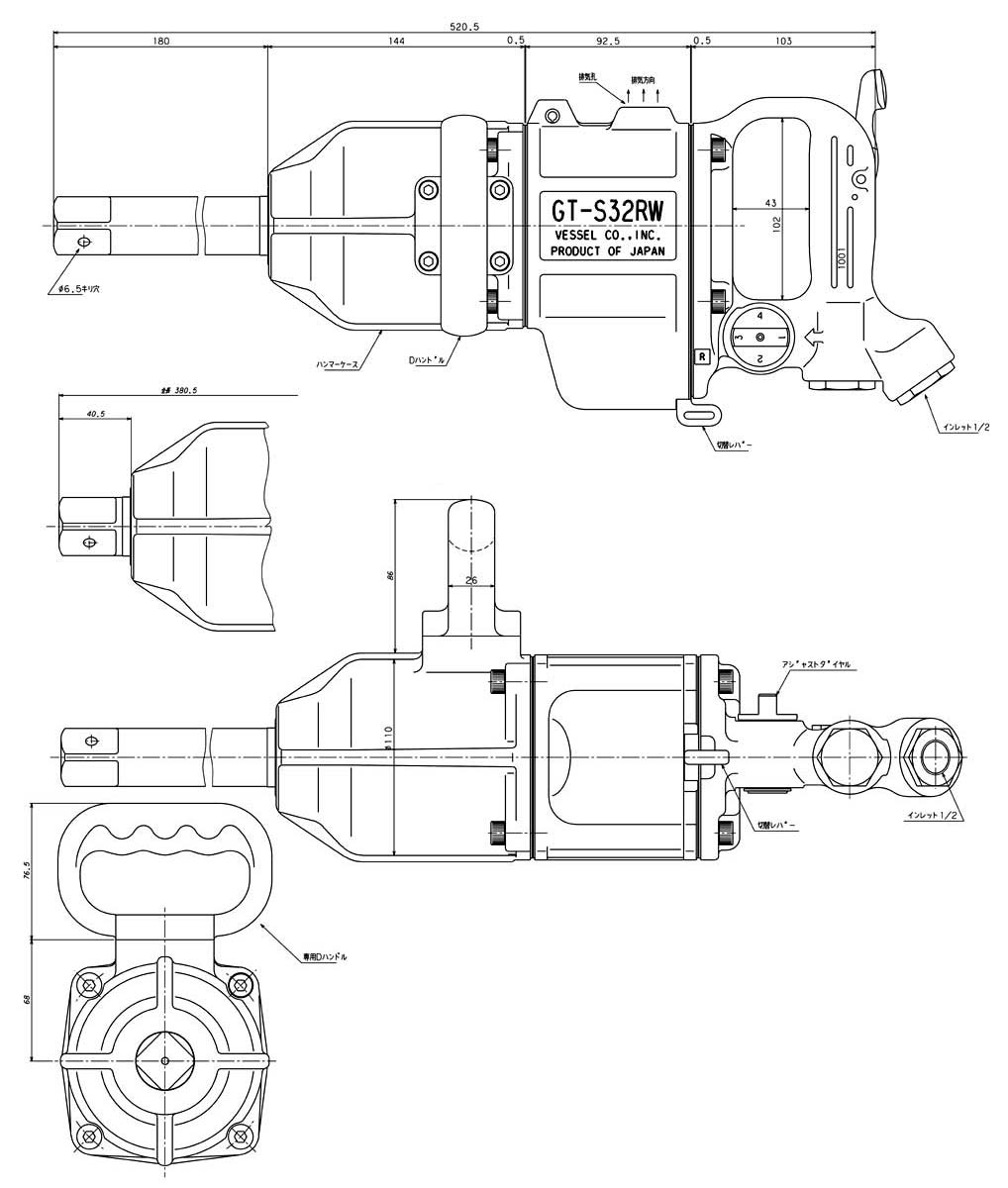

DRAWING / CAD
| BRAND | |
|---|---|
| Product type |
