Air motor tightens really fast
* For powerful constant fastening.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
GT-P80W |
SQ12.7 | 3 | 8 to 10 | 49～259.8 | 7500 | 0.4 | 0.6 | 6.35 | 164 | 1890 | 324048 |
Tip tool mounting type : Pin-lock
Hose Coupling: Rc1/4
Contents
* Socket A/F 14 * Plug BPB-2 * L-wrench H4
Item PKG
233 x 180 x 73

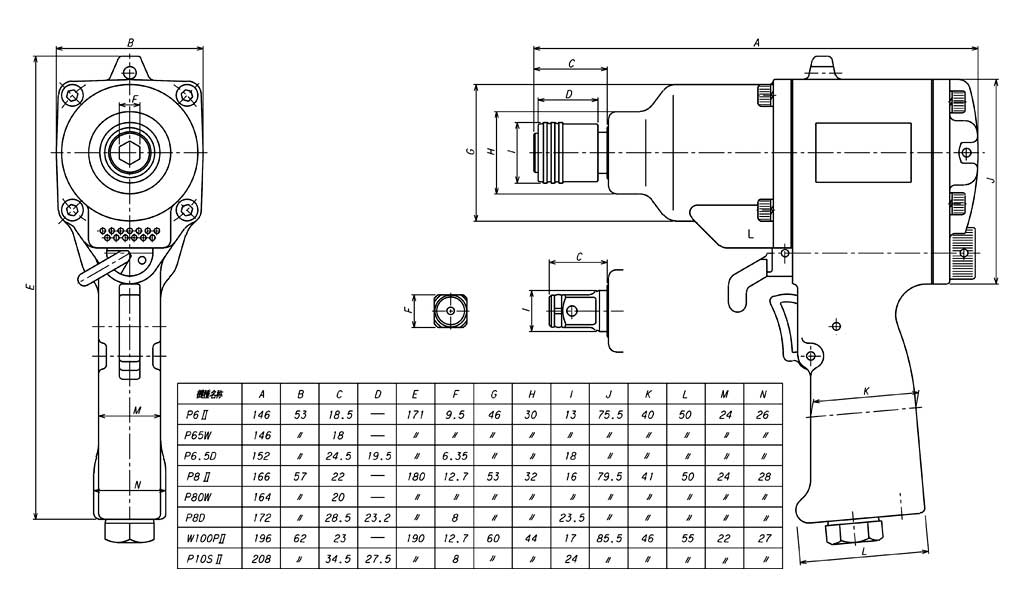

DRAWING / CAD
| BRAND | |
|---|---|
| Product type |
