Air motor tightens really fast
* For powerful constant fastening.
PRODUCT SPEC
| Model | Tip tool mounting size | Adjustment dial steps | Capacity ordinary bolt O/D(mm) | Torque range(N・m) | No load speed(rpm) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
GT-P14W |
SQ12.7 | 4 | 12 to 16 | 49～421.6 | 6400 | 0.47 | 0.6 | 9.5 | 200 | 3200 | 324073 |
Tip tool mounting type : Pin-lock
Hose Coupling: Rc1/4
Contents
* Socket A/F 22 * Plug BPB-2 * L-wrench H5
Item PKG
255 x 200 x 82

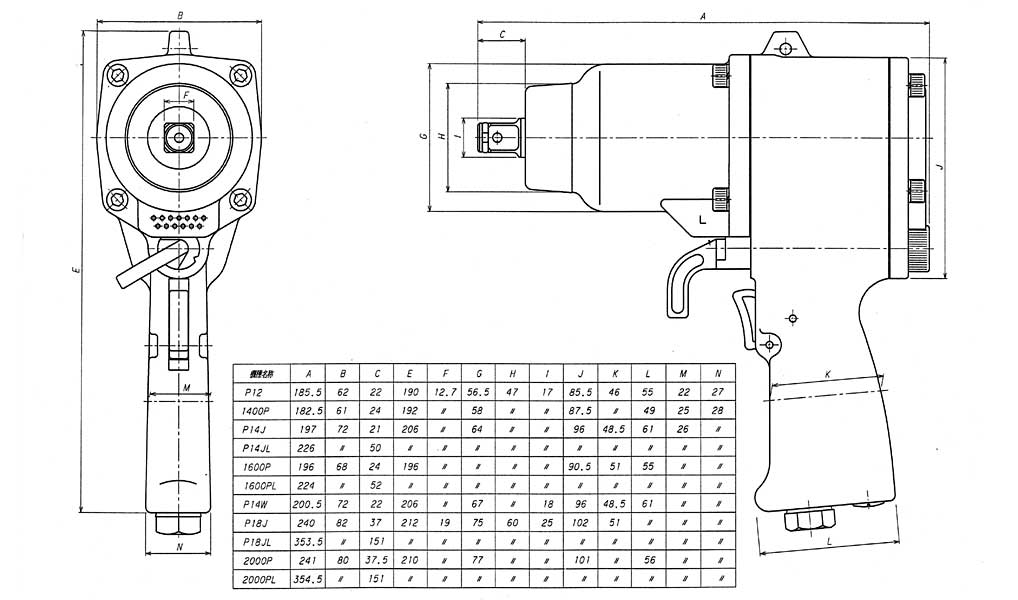

DRAWING / CAD
| BRAND | |
|---|---|
| Product type |
